10mm Planetary DC Gear Motor

Plastic Planetary Gearbox

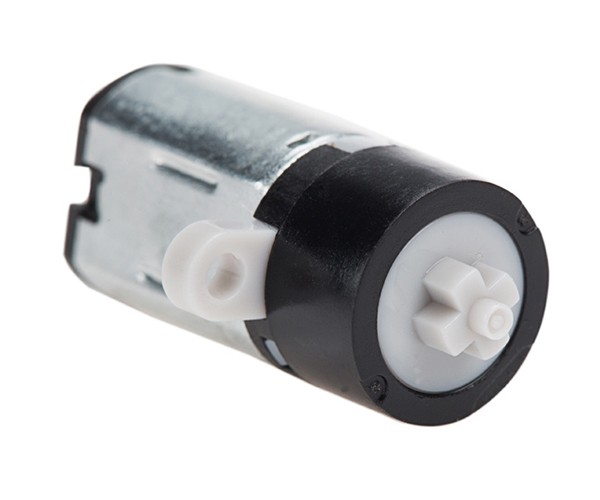

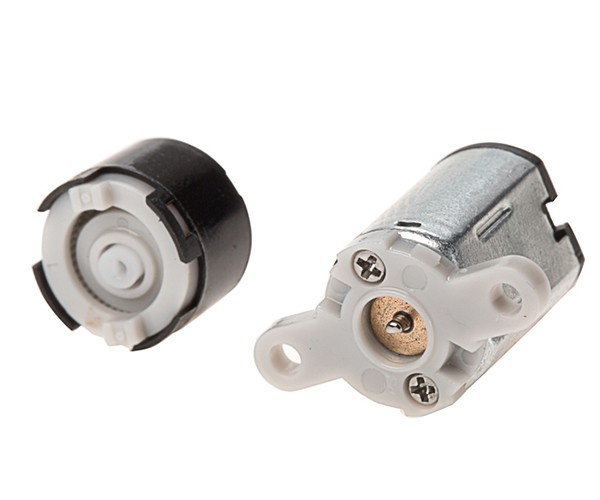

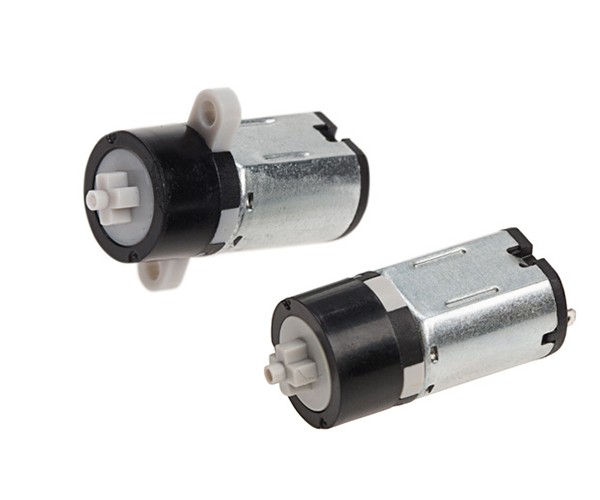

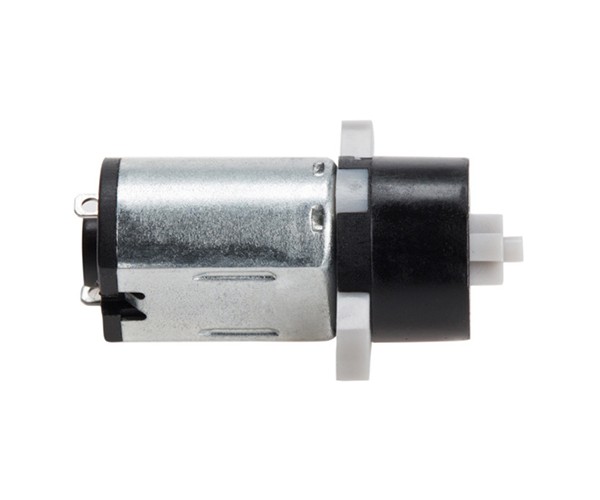

10mm 3v planetary gear motor of the consists of a planetary gearbox and a DC motor with a 10 mm diameter has advantages of high wear resistance, high transmission efficiency, high torque volume ratio, high-temperature resistance and impact resistance

A plastic gearbox motor is a type of gearbox that is made out of plastic. These motors are typically used in applications where weight or space is a concern, such as in small robotic devices. One advantage of using a plastic gearbox motor is that it can be made very light-weight. Additionally, the size of these motors can be easily customized to fit the application. Another advantage of plastic gearbox motors is that they are often less expensive than metal gearbox motors. One downside to using a plastic gearbox motor is that they may not be as durable as metal gearbox motors and may not be able to handle as much torque.

Product parametersPRODUCT PARAMETERS

Product name 10mm plastic planetary gear reducer Material plastic
Direction of rotation CW&CCW Voltage 3-5V
Motors(optional) DC brush motor, DC brushless motor stepper motor Operating temperature range -20℃-80℃
Product model Gear Ratio Rated torque (V) No-load speed (rpm) No-load current (mA) Rated load(g.cm) Load speed (rpm) Load current (mA) Stall torque (g.cm) Efficiency (%)
GB10-171-MD17001-3-M3.0 171 3 63 60 110 43 100 400 60

Product shape parametersSHAPE PARAMETERS

    • One stage planetary gearbox
    • Two stage planetary gearbox
    • Three stage planetary gearbox
    • Four stage planetary gearbox

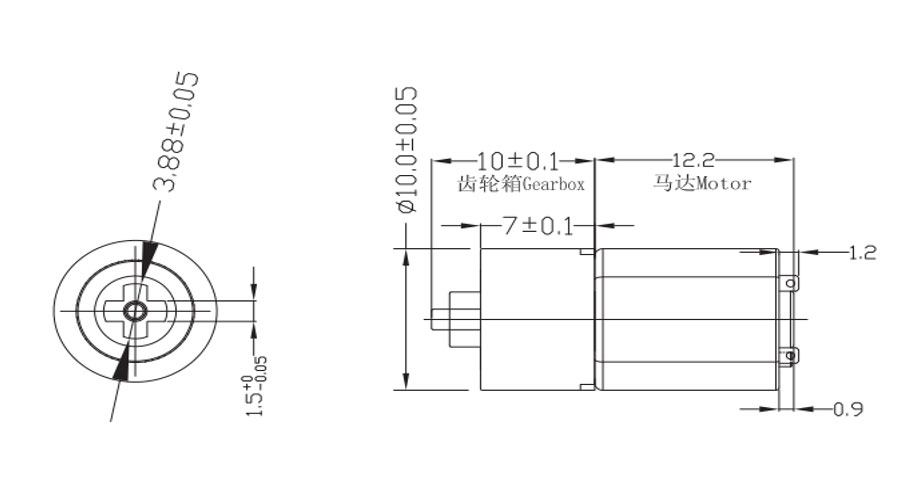

    一级行星减速箱

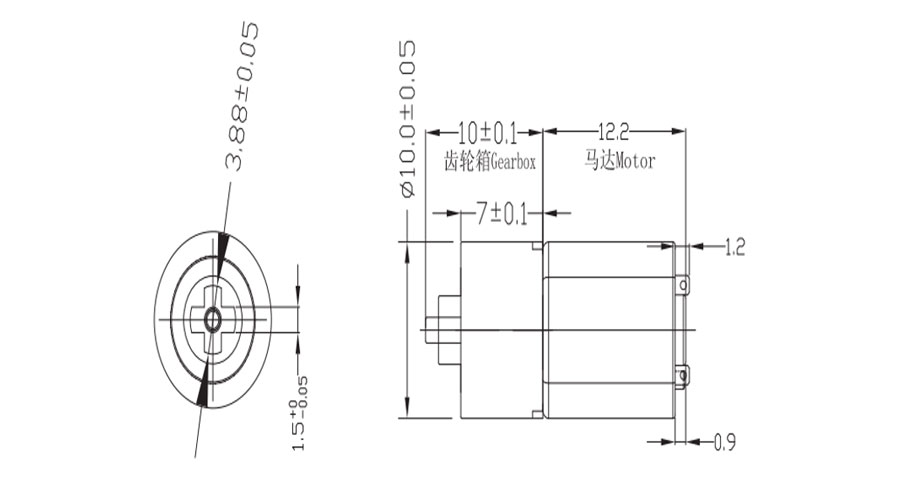

    二级行星减速箱

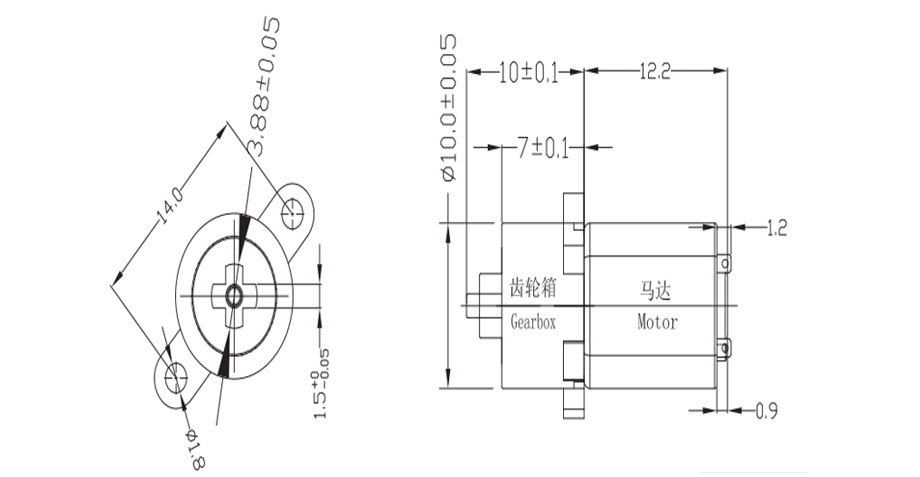

    三级行星减速箱

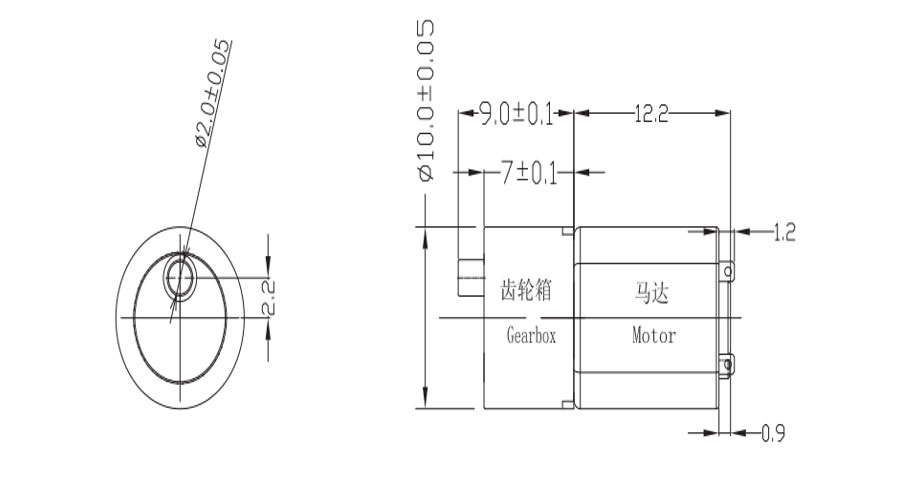

    四级行星减速箱




    Product advantagesPRODUCT ADVANTAGE

    • High precision

      The micro module design with a minimum module of 0.15 is adopted to realize planetary transmission in a limited space. It is processed by high-precision mold equipment and injection molding equipment, effectively ensuring the effective operation of the gearbox


      高精度
    • high torque

      Equipped with high-speed motor, it adopts large speed ratio and non-standard modulus to realize the structure of small space and large torque output, which is suitable for various small intelligent equipment products.


      大扭矩
    • long life

      Use high-strength, good wear-resistant plastic materials, use tooth profile design software, and use non-standard tooth profiles to make the gear stronger and longer in life.


      寿命长
    • 13360643171

      hotline:
      销售热线

    ApplicationsPRODUCT APPLICATION



    • fingerprint lock
    • smart toy
    • electric toothbrush
    • fingerprint lock
    • mobile phone holder
    •






    FAQ
    • What kind of gear reducer motor can you make?2022.08.06
    • We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm

    • Can the gearbox be matched with other motors?2022.08.06
    • Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life

    • About customized gearbox?2022.08.06
    • As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you

    • Can you provide planetary gearbox for testing free of charge?2022.08.06
    • In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point

    • What is the quality of the planetary reducer?2022.08.06
    • At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
