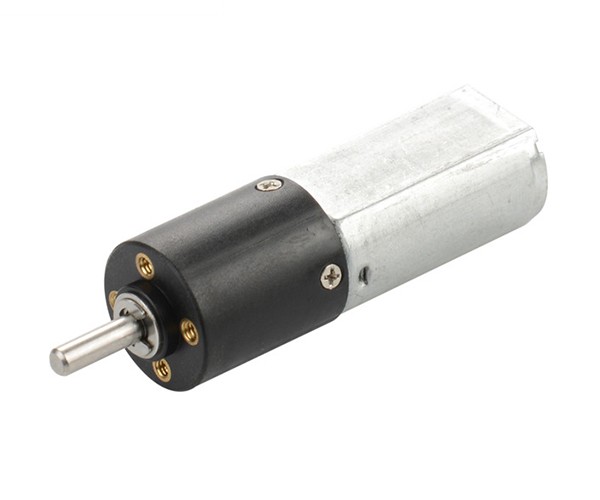

16mm Planetary Motor Electric Gearbox DC 5V

Plastic Planetary Gearbox

16mm planetary gear motor of the consists of a planetary gearbox and a DC motor with a 16 mm diameter has advantages of high wear resistance, high transmission efficiency, high torque volume ratio, high-temperature resistance and impact resistance

A plastic gearbox motor is a type of gearbox that is made out of plastic. These motors are typically used in applications where weight or space is a concern, such as in small robotic devices. One advantage of using a plastic gearbox motor is that it can be made very light-weight. Additionally, the size of these motors can be easily customized to fit the application. Another advantage of plastic gearbox motors is that they are often less expensive than metal gearbox motors. One downside to using a plastic gearbox motor is that they may not be as durable as metal gearbox motors and may not be able to handle as much torque.

Product parametersPRODUCT PARAMETERS

Product name 16mm reduction gearbox Material plastic
Direction of rotation CW&CCW Voltage 3-24V
Motors(optional) Hollow Cup Motor, DC Brush Motor, DC Brushless Motor, Stepper Motor Operating temperature range -20℃-80℃

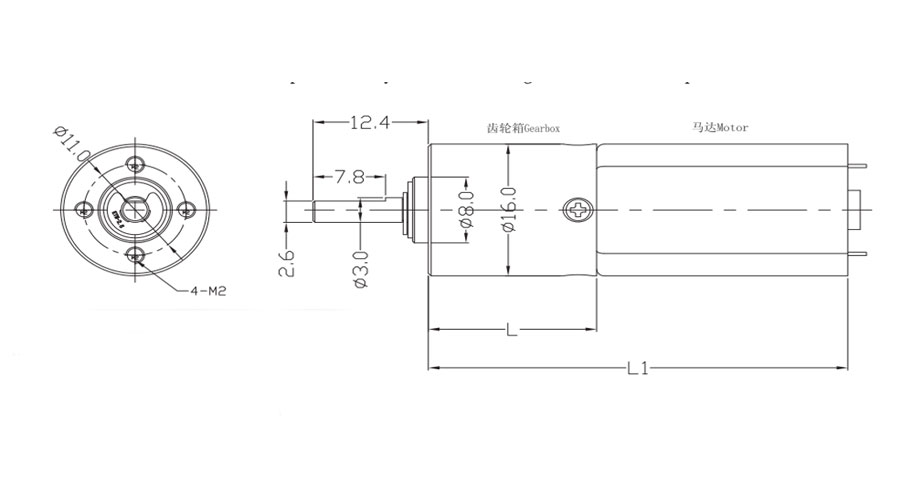

Product model Gear Ratio Rated torque (V) No-load speed (rpm) No-load current (mA) Rated load(g.cm) Load speed (rpm) Load current (mA) Efficiency (%) Gearbox length (mm) Overall length (mm)
GB16-16-MD18005-2-M 16 5 375 50 130 281 180 73 14.8 41.8
GB16-24-MD18005-2-M twenty four 5 250 50 195 187.5 180 73 14.8 41.8
GB16-36-MD18005-2-M 36 5 166.5 50 291 125 180 73 14.8 41.8
GB16-64-MD18005-2-M 64 5 93.5 55 467.2 70 190 65 18.1 45.1
GB16-96-MD18005-2-M 96 5 62.5 55 700.8 46.5 190 65 18.1 45.1
GB16-144-MD18005-2-M 144 5 41.5 55 1051.2 31 190 65 18.1 45.1
GB16-216-MD18005-2-M 216 5 27.5 55 1576.3 20.5 190 65 18.1 45.1
GB16-256-MD18005-2-M 256 5 23.5 60 1689 17.5 200 58 21.4 48.4
GB16-384-MD18005-2-M 384 5 15.5 60 2534 11.5 200 58 21.4 48.4
GB16-576-MD18005-2-M 576 5 10.5 60 3802 7.8 200 58 21.4 48.4
GB16-864-MD18005-2-M 864 5 7 60 5702 5.2 200 58 21.4 48.4
GB16-1296-MD18005-2-M 1296 5 4.5 60 8554 3.5 200 58 21.4 48.4

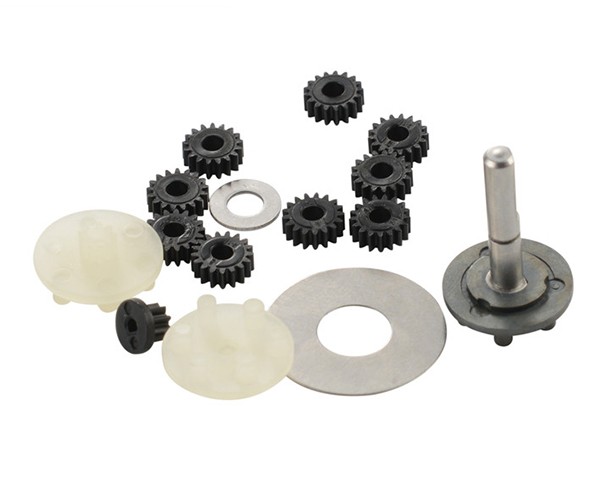

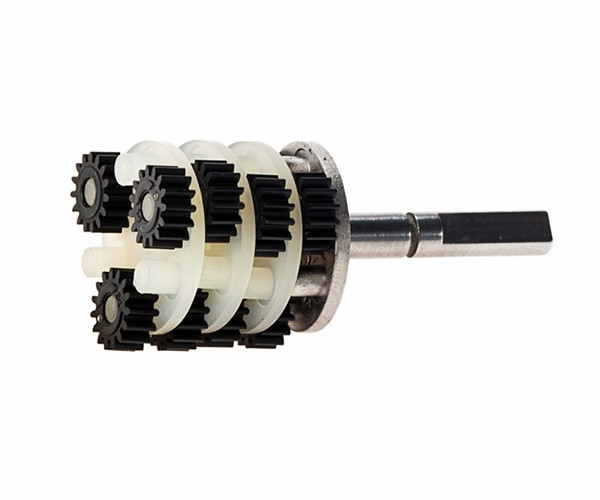

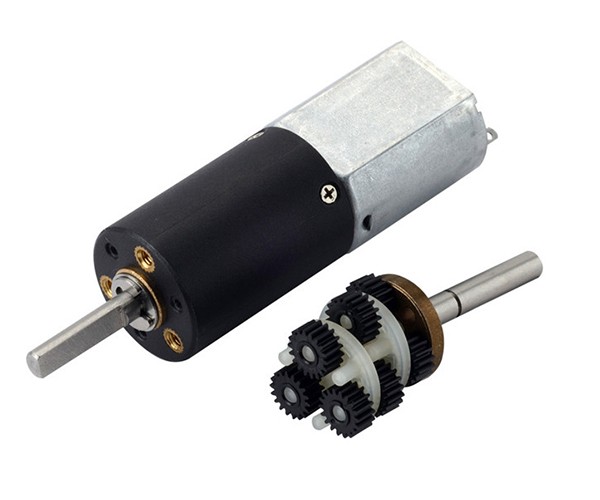

  •  Planetary gear gearbox

Product advantagesPRODUCT ADVANTAGE

  •  High precision


    The use of micro modulus design, the use of a variety of reduction ratios to achieve planetary transmission in a limited space, through high-precision mold equipment and injection molding equipment processing, effectively ensure the effective operation of the gearbox


    高精度
  •  High torque


    Equipped with a high-speed motor, using a variety of speed ratios, to achieve a small space, large torque output structure, broaden the scope of use, suitable for a variety of small smart device products.


    大扭矩
  •  Long lifespan


    The selection of high-strength, wear-resistant plastic raw materials, the use of tooth design software, the use of non-standard tooth shape, so that the gear strength is better, the life is longer.


    寿命长
  • 13360643171

     Sales Hotline
    销售热线

ApplicationsPRODUCT APPLICATION

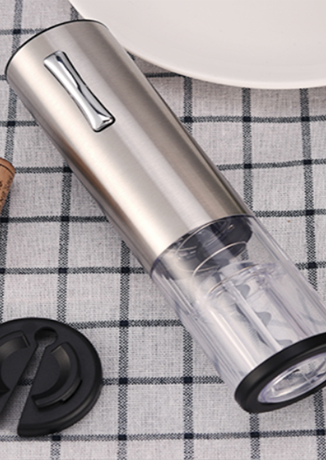

  • automatic bottle opener
  • smart trash can smart trash can
  • 5G Antenna
  • Rotating Ambient Lights
  • eye massager
  •






FAQ
  • What kind of gear reducer motor can you make?2022.08.06
  • We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm

  • Can the gearbox be matched with other motors?2022.08.06
  • Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life

  • About customized gearbox?2022.08.06
  • As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you

  • Can you provide planetary gearbox for testing free of charge?2022.08.06
  • In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point

  • What is the quality of the planetary reducer?2022.08.06
  • At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
