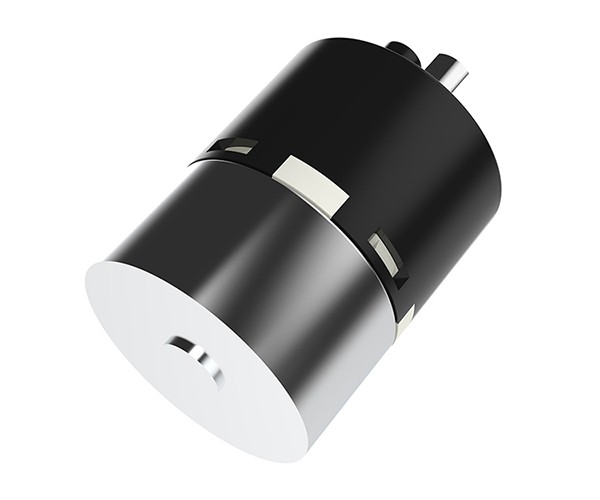

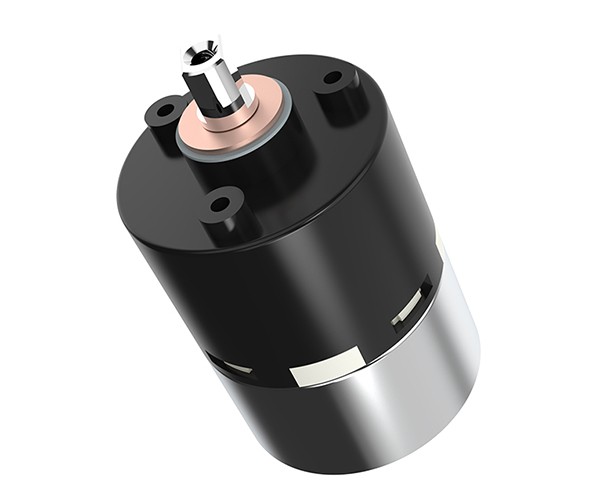

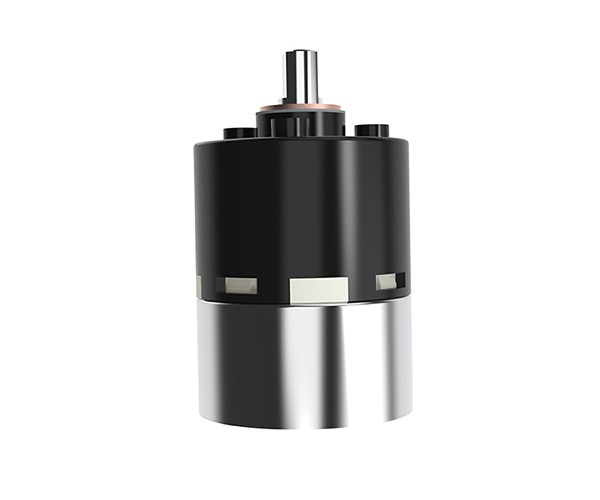

24mm Planetary DC Gear Motor

Plastic Planetary Gearbox

24mm planetary gear motor of the consists of a planetary gearbox and a DC motor with a 24mm diameter has advantages of high wear resistance, high transmission efficiency, high torque volume ratio, high-temperature resistance and impact resistance

The planetary gear motor converts the low input torque and high speed into high torque and low output speed through the gear set. Micro mini planetary gear motor has two distinct features.

1. Its input axis and output axis are coaxial.
2. It has more than three planetary gears to provide large torque and smooth speed transfer in the transmission (there is always a good mesh of gears).

5 Reasons To Use Planetary Gear Motor
1. Planetary DC Gear Motors are DC motors with integrated gear reduction that provide higher torque and lower speed than direct-drive motors.
2. They are ideal for applications that require low speed and high torque, such as robotics, medical equipment, or automation tasks.
3. Planetary DC Gear Motors can be customized to meet specific requirements, such as operating temperature, speed, torque, and power.
4. These motors are typically more efficient than traditional DC motors because they reduce the amount of energy lost in transmission.
5. Planetary DC Gear Motors are available in a wide range of sizes and power ratings, making them suitable for a variety of applications.

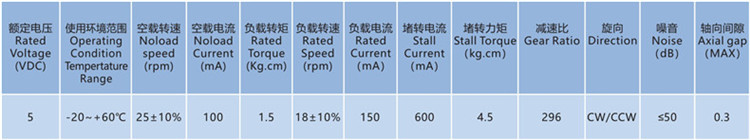

Main Technical performance:

  • What kind of gear reducer motor can you make?2022.08.06
  • We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm

  • Can the gearbox be matched with other motors?2022.08.06
  • Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life

  • About customized gearbox?2022.08.06
  • As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you

  • Can you provide planetary gearbox for testing free of charge?2022.08.06
  • In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point

  • What is the quality of the planetary reducer?2022.08.06
  • At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
