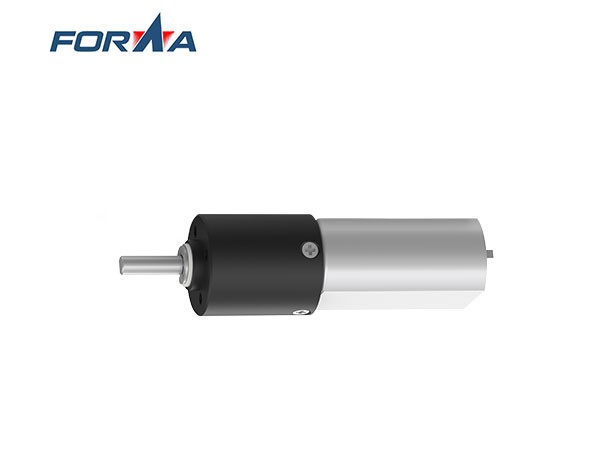

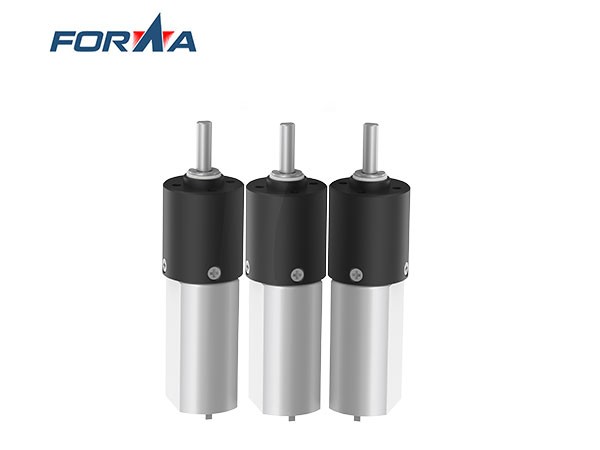

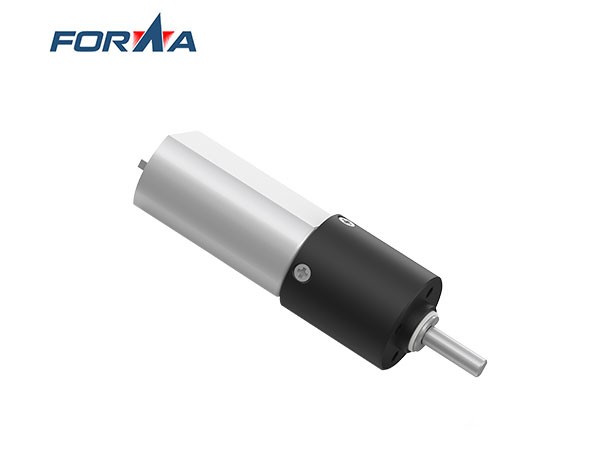

16mm brush motor reducer

Brushed Gear Motor

16mm multiple reduction ratios brushed motor reducer is one of the series of standard products independently developed by Kehua Precision The material of the reduction gear box is made of high-strength plastic raw materials According to customer needs, the reduction ratio can be selected

Product parametersPRODUCT PARAMETERS

Product name 16mm brush motor reducer Material plastic
Direction of rotation CW&CCW Voltage 3-24V
Motors(optional) Hollow Cup Motor, DC Brush Motor, DC Brushless Motor, Stepper Motor Operating temperature range -20℃-80℃
Product model Gear Ratio Rated torque (V) No-load speed (rpm) No-load current (mA) Rated load(g.cm) Load speed (rpm) Load current (mA) Efficiency (%) Gearbox length (mm) Overall length (mm)
GB16-16-MD18005-2-M 16 5 375 50 130 281 180 73 14.8 41.8
GB16-24-MD18005-2-M twenty four 5 250 50 195 187.5 180 73 14.8 41.8
GB16-36-MD18005-2-M 36 5 166.5 50 291 125 180 73 14.8 41.8
GB16-64-MD18005-2-M 64 5 93.5 55 467.2 70 190 65 18.1 45.1
GB16-96-MD18005-2-M 96 5 62.5 55 700.8 46.5 190 65 18.1 45.1
GB16-144-MD18005-2-M 144 5 41.5 55 1051.2 31 190 65 18.1 45.1
GB16-216-MD18005-2-M 216 5 27.5 55 1576.3 20.5 190 65 18.1 45.1
GB16-256-MD18005-2-M 256 5 23.5 60 1689 17.5 200 58 21.4 48.4
GB16-384-MD18005-2-M 384 5 15.5 60 2534 11.5 200 58 21.4 48.4
GB16-576-MD18005-2-M 576 5 10.5 60 3802 7.8 200 58 21.4 48.4
GB16-864-MD18005-2-M 864 5 7 60 5702 5.2 200 58 21.4 48.4
GB16-1296-MD18005-2-M 1296 5 4.5 60 8554 3.5 200 58 21.4 48.4
  • Planetary gear reducer
One stage planetary gearbox

Product advantagesPRODUCT ADVANTAGE

  • High precision

    It adopts micro-modulus design and adopts various reduction ratios to realize planetary transmission in limited space. It is processed by high-precision mold equipment and injection molding equipment, which effectively ensures the effective operation of the gearbox.


    High precision
  • high torque

    Equipped with a high-speed motor, using a variety of speed ratios, it realizes the structure of small space and large torque output, which broadens the scope of use and is suitable for various small intelligent equipment products.


    high torque
  • long life

    Use high-strength, good wear-resistant plastic materials, use tooth profile design software, and use non-standard tooth profiles to make the gear stronger and longer in life.


    long life
  • 13360643171

    hotline:
    hotline

ApplicationsPRODUCT APPLICATION

  • automatic bottle opener
  • smart trash can smart trash can
  • 5G Antenna
  • Rotating Ambient Lights
  • eye massager
  •






FAQ
  • What kind of gear reducer motor can you make?2022.08.06
  • We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm

  • Can the gearbox be matched with other motors?2022.08.06
  • Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life

  • About customized gearbox?2022.08.06
  • As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you

  • Can you provide planetary gearbox for testing free of charge?2022.08.06
  • In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point

  • What is the quality of the planetary reducer?2022.08.06
  • At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products
