6mm planetary gear motor

Plastic Planetary Gearbox

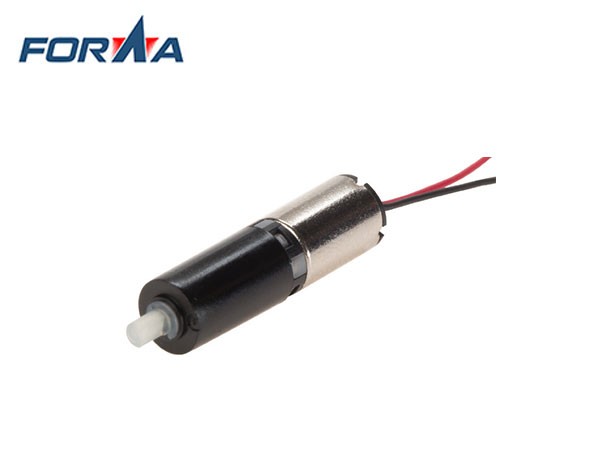

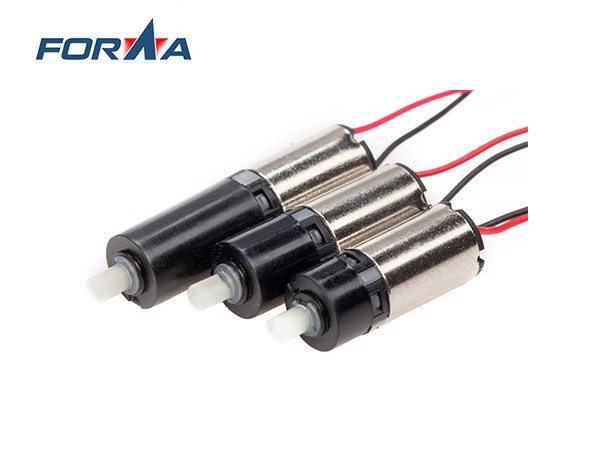

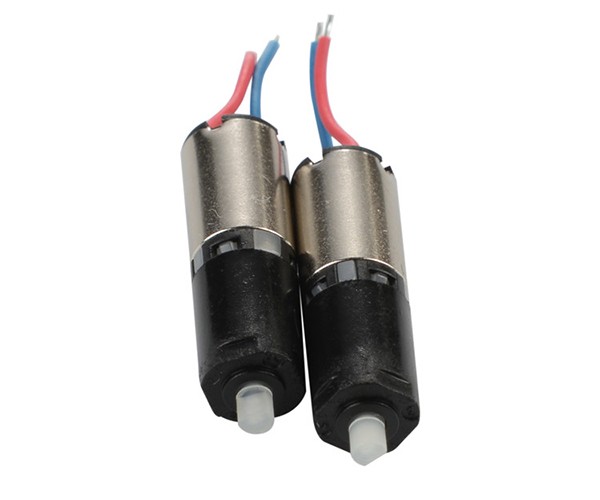

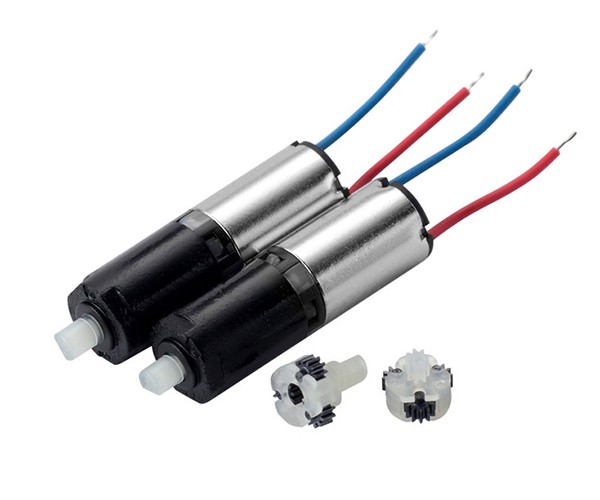

6mm planetary gear motor of the consists of a planetary gearbox and a DC coreless motor with a 6 mm diameter has advantages of high wear resistance, high transmission efficiency, high torque volume ratio, high-temperature resistance and impact resistance

Material: Using plastic+high hardness steel, robust, improve the quality of bearing and motor service life, good consistency, low noise, corrosion resistant, sturdy, fit for a variety of environment. Most are used in electric lock and robot.

Product parametersPRODUCT PARAMETERS

Product name 6mm plastic planetary gear reducer Material plastic
Direction of rotation CW、CCW Voltage 3-12V
Motors(optional) Hollow Cup Motor, DC Brush Motor, DC Brushless Motor Stepper Motor Operating temperature range -20℃-60℃
Product model Gear Ratio Rated torque (V) No-load speed (rpm) No-load current (mA) Rated load(g.cm) Load speed (rpm) Load current (mA) Stall torque (g.cm) Efficiency (%)
GB06-5.14-MD16001-1-M 5.14 3 6400 50 1.7 4600 100 6.5 85
Product model Gear Ratio Rated torque (V) No-load speed (rpm) No-load current (mA) Rated load(g.cm) Load speed (rpm) Load current (mA) Stall torque (g.cm) Efficiency (%)
GB06-26.45-MD16001-1-M 26.45 3 1200 60 7.5 900 100 28 73
Product model Gear Ratio Rated torque (V) No-load speed (rpm) No-load current (mA) Rated load(g.cm) Load speed (rpm) Load current (mA) Stall torque (g.cm) Efficiency (%)
GB06-136-MD16001-1-M 136 3 240 70 33 175 100 125 65
Product model Gear Ratio Rated torque (V) No-load speed (rpm) No-load current (mA) Rated load(g.cm) Load speed (rpm) Load current (mA) Stall torque (g.cm) Efficiency (%)
GB06-700-MD16001-1-M 700 3 46 80 150 34 100 580 60

Product shape parametersSHAPE PARAMETERS

    • One stage planetary gearbox
    • Two stage planetary gearbox
    • Three stage planetary gearbox
    • Four stage planetary gearbox



    Product advantagesPRODUCT ADVANTAGE

    • High precision

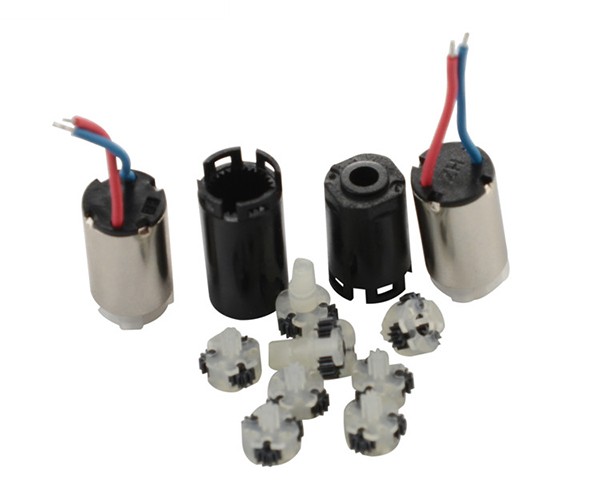

      Adopting micro-modulus design, planetary gear transmission is realized in a limited space. The planetary gear has a minimum outer diameter of 1.4mm and a modulus of 0.15. It is processed by high-precision mold processing equipment and injection molding equipment, which effectively ensures the efficient operation of the gearbox.


      High precision
    • high torque

      Equipped with a hollow-cup motor with a speed of up to 33000rpm, applying a suitable reduction ratio to achieve large torque output to meet the different use environments of customers


      high torque
    • long life

      High-strength, high-toughness plastic materials are used to enhance the strength and wear resistance of micro-modulus gears, ensuring that the gear box operates under the condition of high-speed rotation of the hollow cup motor, and the operating life of the whole machine is more than 100H.


      long life
    • 13360643171hotline

      hotline:

    High Accuracy Miniature Geared Motor Outline Drawing

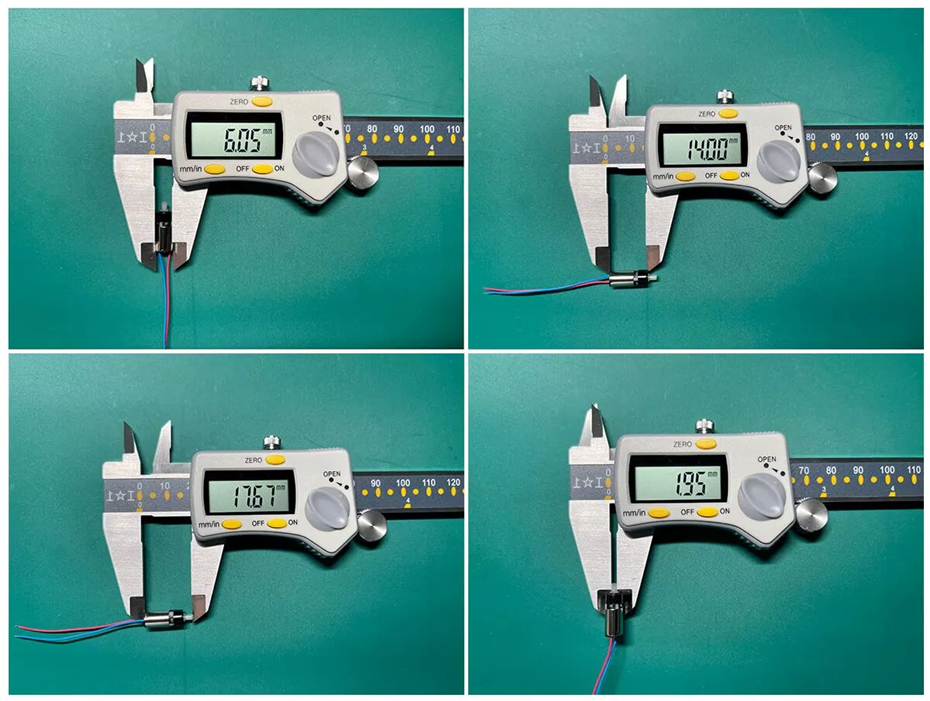

    Please allow slight manual measurement deviation for the data.

    ApplicationsPRODUCT APPLICATION

    • fingerprint lock
    • automatic ear remover
    • smart train
    • eye massager
    • eye massager

    FAQ
    • Q6. What is the process behind injection molding?2024.01.27
    • The plastic pellets are melted and are then inserted in liquid form into the mold tool, where it cools and tak

    • Q5. What plastics can you use with injection molding?2024.01.27
    • Injection molding can use almost any type of plastic that can also be combined together This unmatched versatili

    • Q4. Before shipment, how to make sure the products quality?2024.01.27
    • A: We will supply you a video for production process detail include process report, products size, structure and surface detail, packing detail and so on

    • Q3. I have no 3D drawing, how should I start the new project? 2024.01.27
    • A: You can supply us a sample, and we will help to finish the 3D drawing design

    • Q2. How long is the lead-time for mold?2024.01.27
    • A: It all depends on the mold’s size and complexity Normally, the lead time is 25-35days If the molds are very simple and with small size, we can work out within 15 days

    • Q1. When can I get the price?2024.01.27
    • A: We usually quote within 24 hours after we get your inquiry Or please call us or send us email so that we will make the quotation soonest

    • What kind of gear reducer motor can you make?2022.08.06
    • We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm

    • Can the gearbox be matched with other motors?2022.08.06
    • Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life

    • About customized gearbox?2022.08.06
    • As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you

    • Can you provide planetary gearbox for testing free of charge?2022.08.06
    • In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point
