Brushless Gear Motor

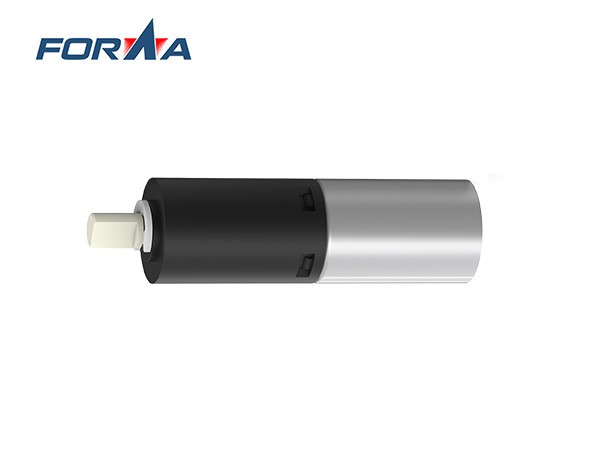

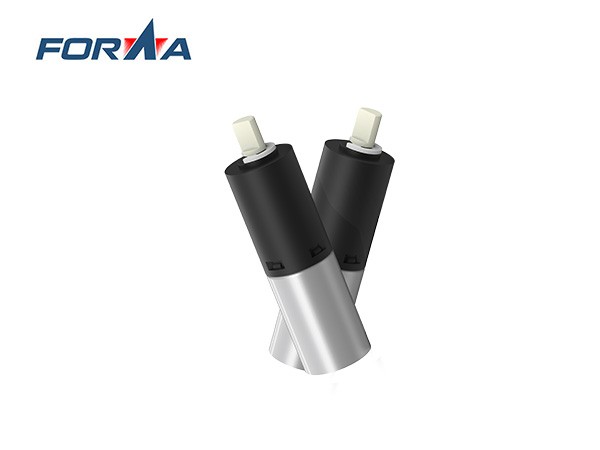

6mm planetary gear motor of the consists of a planetary gearbox and a DC Coreless motor with a 6mm diameter has advantages of high wear resistance, high transmission efficiency, high torque volume ratio, high-temperature resistance and impact resistance
6mm Diameter miniature gear motor is the same thickness as a pencil. There are 4 different length options.

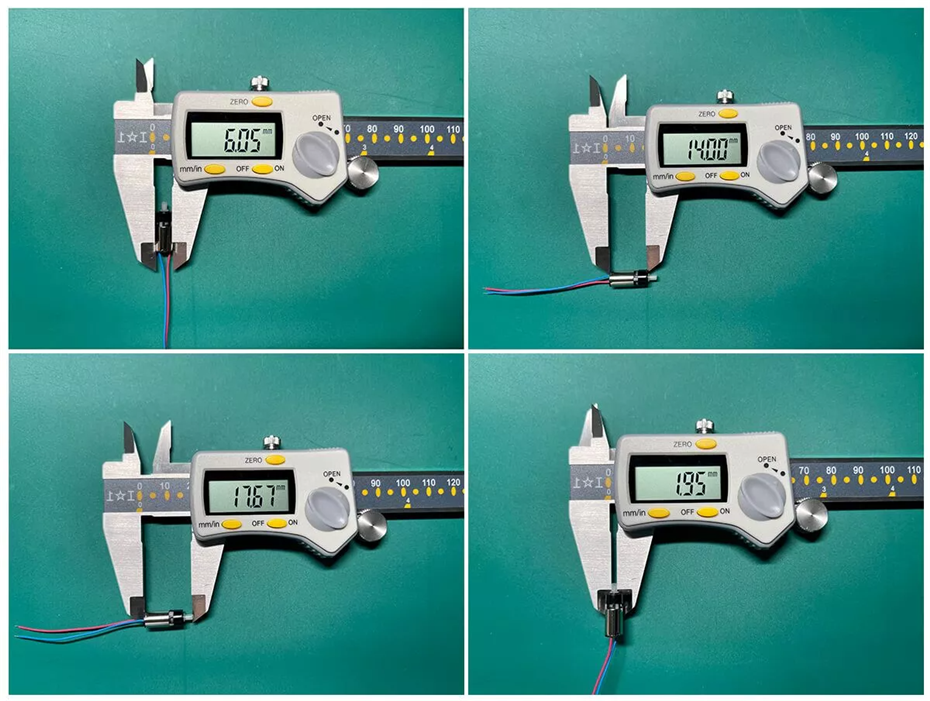

There are 4 types of 6mm planetary gear motors, (Motor Body + Gearbox) 15mm-20mm Length. We have 3D drawings available for you to insert the product prototype into solidworks projects. Application:Consumer Electronic Products,Models,Personal Care Product,Automatic door lock,etc.
The small planetary gear motor converts the low input torque and high speed into high torque and low output speed through the gear set. Micro mini planetary gear motor has two distinct features.
1. Its input axis and output axis are coaxial.
2. It has more than three planetary gears to provide large torque and smooth speed transfer in the transmission (there is always a good mesh of gears).
These micro planetary gear motors just have 6mm diameter which makes them great choice for mini robot and very small mechanisms.

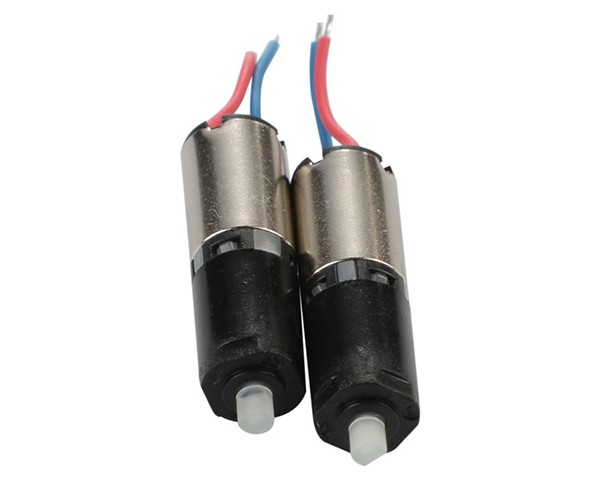

Here we would like to highlight our 6 mm standard plastic planetary gear motor They consist of a micro coreless motor and a planetary gearbox.
The plastic planetary motor has 4 gear ratio options, it is divided into 1 stage with ratio 5.14:1, 2 stages with ratio 26.45:1, and 3 stages with ratio 136.02:1, 4 Stages with ratio 699.55:1.
| Product name | 6mm DC Coreless Gear Motors | Material | plastic |
| Direction of rotation | CW、CCW | Voltage | 3-12V |
| Motors(optional) | Hollow Cup Motor, DC Brush Motor, DC Brushless Motor Stepper Motor | Operating temperature range range | -20℃-60℃ |
| Product model | Gear Ratio | Rated torque (V) | No-load speed (rpm) | No-load current (mA) | Rated load(g.cm) | Load speed (rpm) | Load current (mA) | Stall torque (g.cm) | Efficiency (%) |
 |
| GB06-5.14-MD16001-1-M | 5.14 | 3 | 6400 | 50 | 1.7 | 4600 | 100 | 6.5 | 85 |
 |
Product model | Gear Ratio | Rated torque (V) | No-load speed (rpm) | No-load current (mA) | Rated load(g.cm) | Load speed (rpm) | Load current (mA) | Stall torque (g.cm) | Efficiency (%) |
| GB06-26.45-MD16001-1-M | 26.45 | 3 | 1200 | 60 | 7.5 | 900 | 100 | 28 | 73 |
| Product model | Gear Ratio | Rated torque (V) |
No-load speed (rpm) | No-load current (mA) | Rated load(g.cm) | Load speed (rpm) | Load current (mA) | Stall torque (g.cm) | Efficiency (%) |
 |
| GB06-136-MD16001-1-M | 136 | 3 | 240 | 70 | 33 | 175 | 100 | 125 | 65 |
 |
Product model | Gear Ratio | Rated torque (V) |
No-load speed (rpm) | No-load current (mA) | Rated load(g.cm) | Load speed (rpm) | Load current (mA) | Stall torque (g.cm) | Efficiency (%) |
| GB06-700-MD16001-1-M | 700 | 3 | 46 | 80 | 150 | 34 | 100 | 580 | 60 |
The plastic pellets are melted and are then inserted in liquid form into the mold tool, where it cools and tak
Injection molding can use almost any type of plastic that can also be combined together This unmatched versatili
A: We will supply you a video for production process detail include process report, products size, structure and surface detail, packing detail and so on
A: You can supply us a sample, and we will help to finish the 3D drawing design
A: It all depends on the mold’s size and complexity Normally, the lead time is 25-35days If the molds are very simple and with small size, we can work out within 15 days
A: We usually quote within 24 hours after we get your inquiry Or please call us or send us email so that we will make the quotation soonest
We can make DC motors below 3v-36v, with power less than 40W and diameter less than 45mm
Our standard gearbox can be matched with other motors The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life
As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you
In order to promote further cooperation between the two sides, it has become a common practice that we provide samples free of charge and you bear the freight But I think if you really care about it, you won t mind spending some sample fees If it is provided for free to every customer who requires us to send samples, it will be a great burden for us If we receive your formal order, we can refund the sample fee We sincerely hope to get your support and understanding on this point
